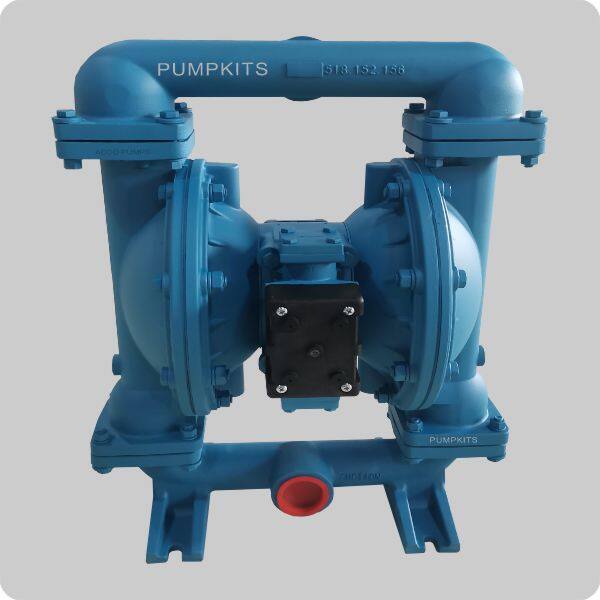

P15B1AEWANS000 Compatible With Sandpiper Pump
Completely interchangeable with Sandpiper pumps parts
Sandpiper® is a registered trademark of Warren Rupp Company (IDEX Corp) .
Pumpkits® offers parts that fit Sandpiper products, but they are not genuine Sandpiper parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Compatible Brands | SANDPIPER® |
|---|---|
| Material | |
| PUMP SIZE | 1.5" |
| WETTED MATERIAL | Aluminum |
| NON-WETTED MATERIAL | Aluminum |
| Diaphragm/Check Valve Materials | EPDM/EPDM |
| Check Valve Seat | UHMW |
| Porting Options | NPT Threads |
| Item | Part Number | Description | Qty |
| 1 | 031.140.000 | Air Valve Assembly w/Integral muffler | |
| (Cast Iron Centers Only) | 1 | ||
| 031.141.000 | Air Valve Assembly | ||
| (Cast Iron Centers Only) | 1 | ||
| 031.146.000 | Air Valve Assembly w/Integral muffler | ||
| (Stroke Indicator Only) | 1 | ||
| 031.147.000 | Air Valve Assembly (Stroke Indicator Only) | 1 | |
| 031.173.000 | Air Valve Assembly w/Integral muffler | 1 | |
| 031.173.001 | Air Valve Assembly | ||
| (with Stainless Steel Hardware) | 1 | ||
| 031.183.000 | Air Valve Assembly | 1 | |
| 031.179.000 | Air Valve Assembly | ||
| (Cast Iron or Stainless Steel Centers Only) | 1 | ||
| 2 | 050.005.354 | Ball, Check | 4 |
| 050.005.360 | Ball, Check | 4 | |
| 050.005.360W | Ball, Weighted Check | 4 | |
| 050.005.363 | Ball, Check | 4 | |
| 050.005.364 | Ball, Check | 4 | |
| 050.005.365 | Ball, Check | 4 | |
| 050.005.365W | Ball, Weighted Check | 4 | |
| 050.010.600 | Ball, Check | 4 | |
| 3 | 070.006.170 | Bushing | 2 |
| 4 | 095.110.000 | Pilot Valve Assembly | 1 |
| 095.110.558 | Pilot Valve Assembly | ||
| (Cast Iron Centers Only) | 1 | ||
| 095.095.110 | Pilot Valve Assembly | ||
| (Stainless Steel Centers Only) | 1 | ||
| 5 | 114.024.157 | Intermediate Bracket | 1 |
| 114.024.010 | Intermediate Bracket | 1 | |
| 114.024.110 | Intermediate Bracket | ||
| (Stainless Steel Centers Only) | 1 | ||
| 6 | 132.035.360 | Bumper, Diaphragm | 2 |
| 7 | 135.034.506 | Bushing, Plunger | 2 |
| 8 | 165.118.157 | Cap, Air Inlet Assembly | 1 |
| 165.118.010 | Cap, Air Inlet Assembly | 1 | |
| 165.118.110 | Cap, Air Inlet Assembly | ||
| (Stainless Steel Centers Only) | 1 | ||
| 9 | 170.060.115 | Capscrew, Hex Hd 7/16-14 X 2.00 | 16 |
| 170.060.330 | Capscrew, Hex Hd 7/16-14 X 2.00 | 16 | |
| 10 | 170.061.115 | Capscrew, Hex Hd 3/8-16 X 1.75 | 16 |
| 170.061.330 | Capscrew, Hex Hd 3/8-16 X 1.75 | 16 | |
| 11 | 170.069.115 | Capscrew, Hex Hd 5/16-18 X 1.75 | 4 |
| 170.069.330 | Capscrew, Hex Hd 5/16-18 X 1.75 | 4 | |
| 12 | 170.006.115 | Capscrew, Hex HD 3/8-16 X 1.00 | 4 |
| 170.006.330 | Capscrew, Hex HD 3/8-16 X 1.00 | 4 | |
| 171.053.115 | Capscrew, Soc Hd 3/8-16 X 2.50 | ||
| (Stroke Indicator Only) | 4 | ||
| 171.053.330 | Capscrew, Soc Hd 3/8-16 X 2.50 | ||
| (Stroke Indicator Only) | 4 | ||
| 171.011.115 | Capscrew, Soc Hd 1/2-13 x 1.00 | ||
| (Stainless Center) | 8 | ||
| 13 | 171.059.115 | Capscrew, Soc Hd 7/16-14 X 1.25 | 8 |
| 171.059.330 | Capscrew, Soc Hd 7/16-14 X 1.25 | 8 | |
| 14 | 196.169.156 | Chamber, Outer | 2 |
| 196.169.010 | Chamber, Outer | 2 | |
| 196.169.110 | Chamber, Outer | 2 | |
| 15 | 196.170.157 | Chamber, Inner | 2 |
| 196.170.010 | Chamber, Inner | 2 | |
| 196.170.110 | Chamber, Inner | 2 | |
| 16 | 286.099.354 | Diaphragm | 2 |
| 286.099.360 | Diaphragm | 2 | |
| 286.099.363 | Diaphragm | 2 | |
| 286.099.364 | Diaphragm | 2 | |
| 286.099.365 | Diaphragm | 2 | |
| 17 | 286.099.600 | Diaphragm, Overlay | 2 |
| 286.113.000 | Diaphragm, One.Piece Bonded | 2 | |
| 18 | 360.093.360 | Gasket, Air Valve | 1 |
| 19 | 360.114.360 | Gasket, Pilot Valve | 1 |
| 20 | 360.104.379 | Gasket, Air Inlet | 1 |
