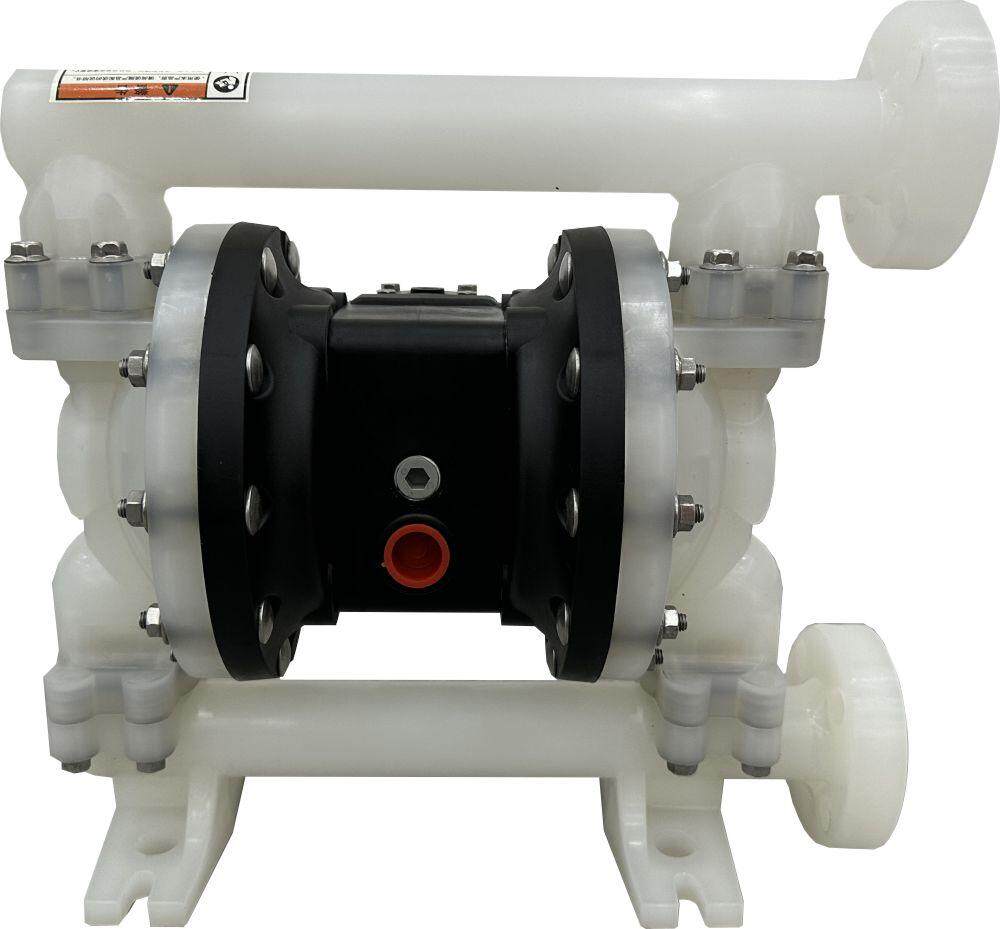

PD20P-FKS-KTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Polypropylene/Vinyl Ester |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Kynar PVDF |
| Hardware Material | Stainless Steel |
| Seat Material | Kynar PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 184 gpm (696 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 170° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Mounting Dimension | 8.18″ x 14.16″ (207.8 mm x 359.7 mm) |
| Size | 2″ (51 mm) |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI/DIN Flange |
| Air Inlet (female) | 3/4 – 14 NPT |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPSM |
