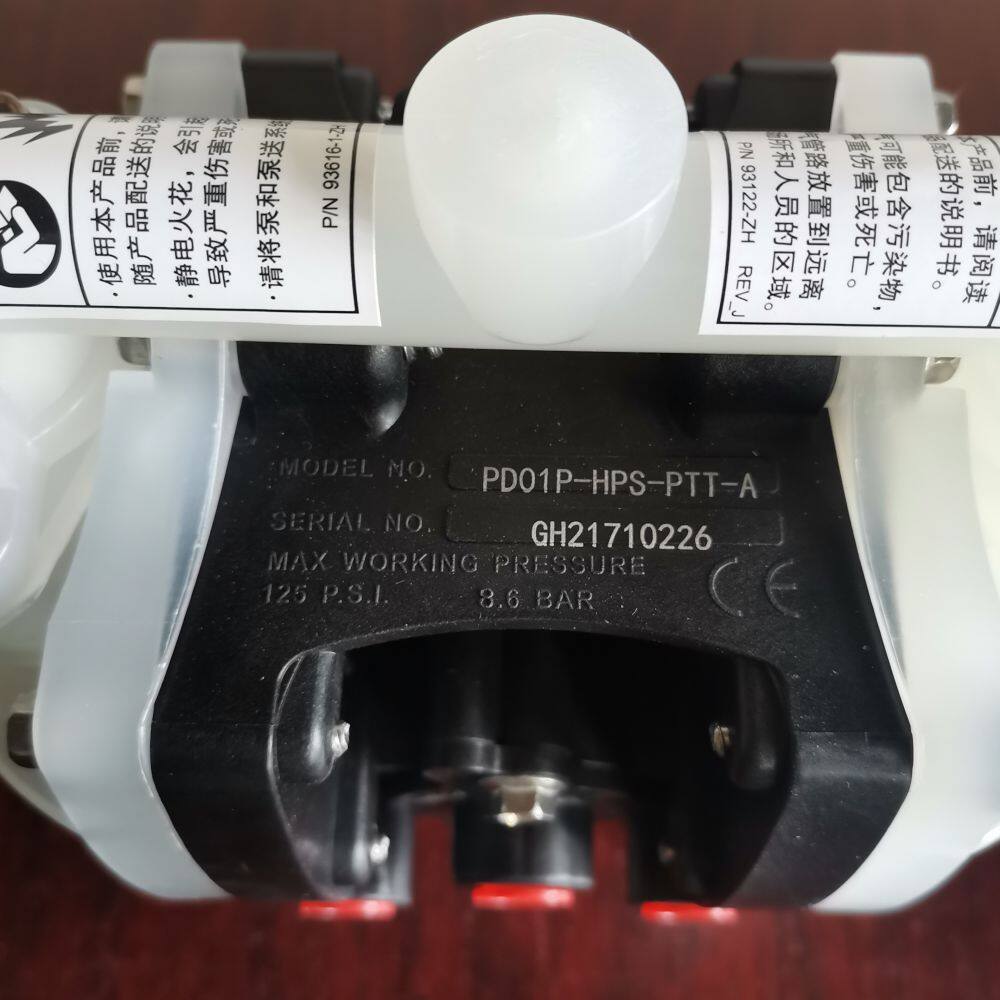

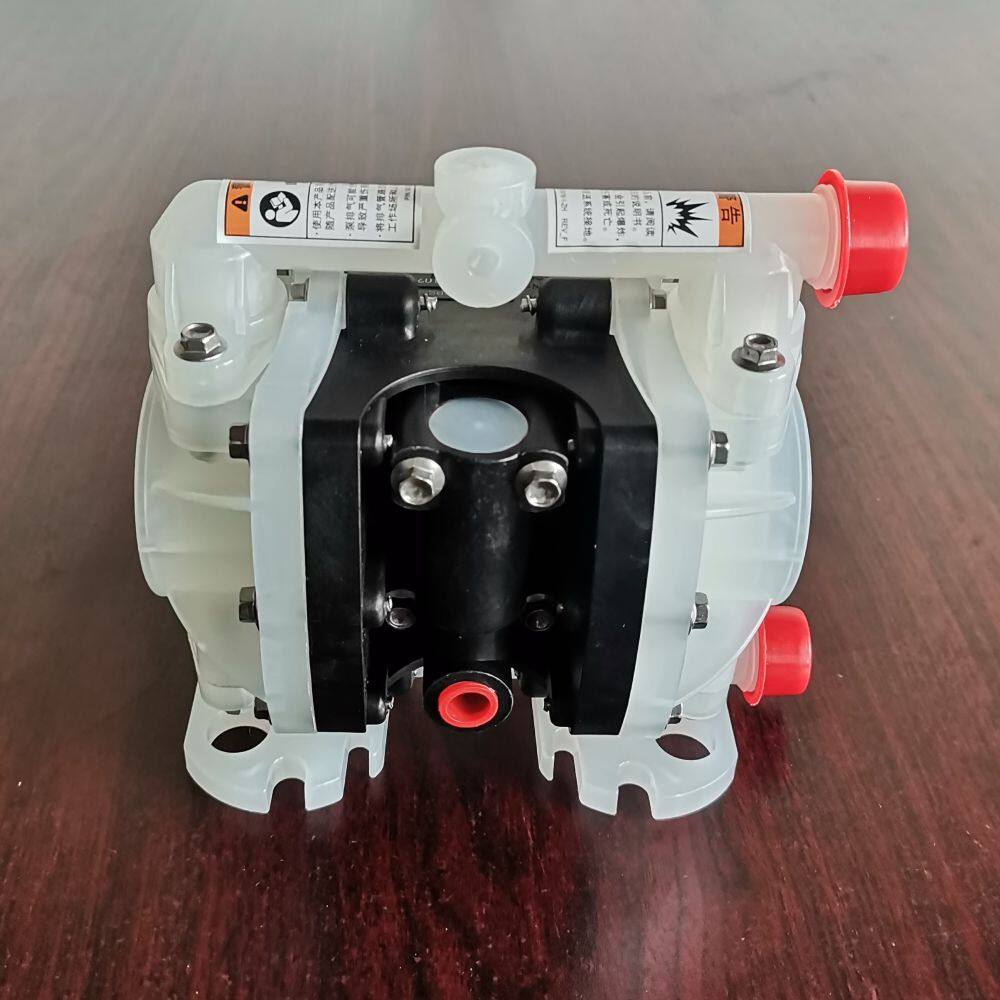

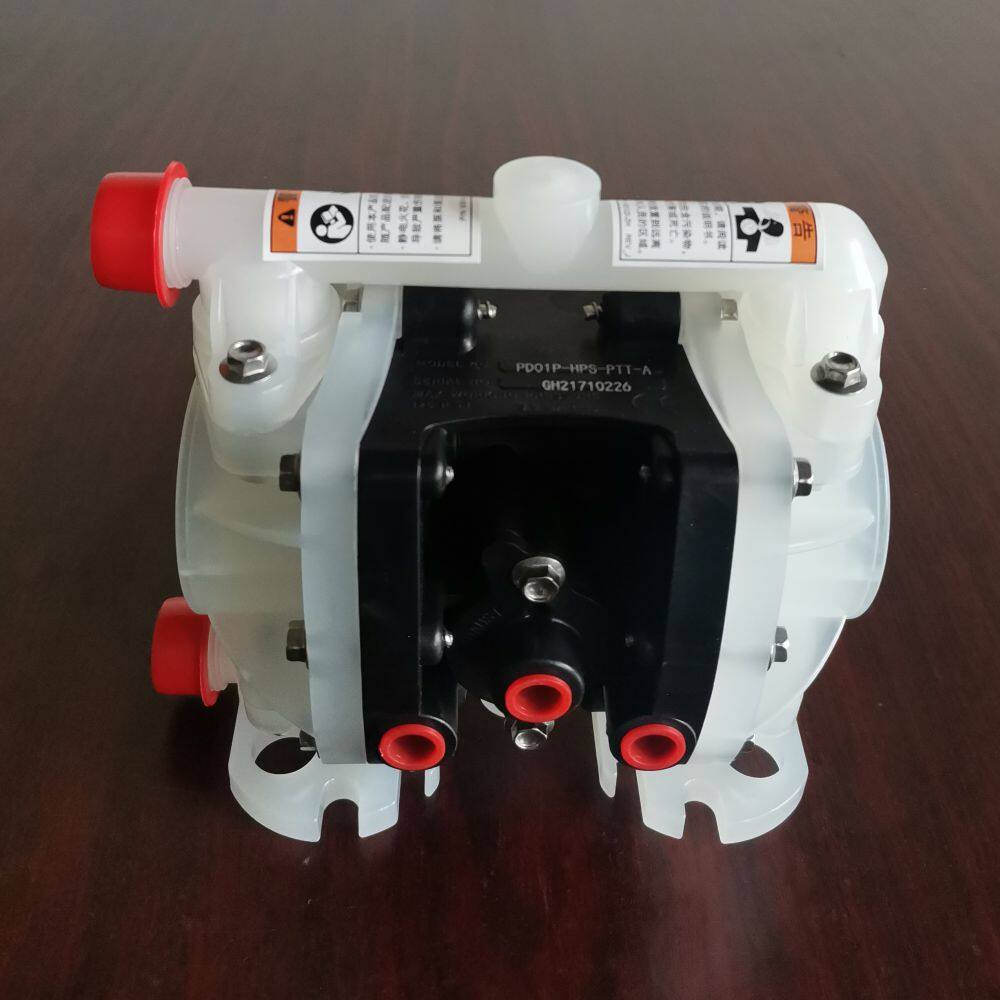

PD01P-HPS-PTT-A Compatible With ARO Pump
PD01P-HPS-PTT-A Compatible With ARO Pump

PD01P-HPS-PTT-A Compatible With ARO Pump

SKU: PD01P-HPS-PTT-A Categories: , , Tag:

PD01P-HPS-PTT-A Compatible With ARO Pump

Completely interchangeable with ARO pumps parts

ARO® is a registered trade mark of Ingersoll Rand Company.

Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.

All names, numbers, symbols and descriptions are used for reference purposes only.

It is not implied that any part listed is the product of these manufacturers.

Technical Specification
PD01P-HPS-PTT-A Product Specific Data
Model Series Standard Pump
Center body material Polypropylene
Connection Hybrid 1/4″ NPT / BSP
Fluid caps/Manifold material Polypropylene
Hardware material Stainless Steel
Seat/Spacer Material Polypropylene
Check Material PTFE
Diaphragm/O-Ring Material PTFE
Revision Revision
Pump Type Diaphragm Pump
Max Air Inlet Pressure 8.6 bar (125 psi)
Min Air Inlet Pressure 0.69 bar (10 psi)
Max Outlet Pressure 8.6 bar (125 psi)
Max Flow Rate 5.3 gpm (20 lpm)
Max Material Inlet Pressure 0.69 bar (10 psi)
Displacement/Cycle @ 125 p.s.i.g 0.019 gal / 0.072 ltrs
Max Solid Size 1/16″ dia.(1.6 mm)
Max Temperature Limits 35° to 175° F (2° to 79° C)
Noise Level @ 70 psi, 60 cpm 62.3 db(A)
Ratio 1:1
Maximum Dry Suction Lift 15 ft (4.6 m)
Muffler Integral, Included



Compatible Brands

ARO®
PUMP SIZE

0.25 INCH
Fluid Cap&Manifold Material

Polypropylene
Center Section Material

Aluminium
SEAT MATERIALS

Polypropylene
BALL MATERIALS

PTFE
DIAPHRAGM MATERIALS

PTFE-Santoprene
Item Description p/n Qty mtl
1 Rod Assembly (includes seals) 24028284 [1] ---
5 Washer, Diaphragm 23981541 [2] [P]
77 Plate 93264 [2] ---
206 Caution Label 93122 [1] ---
207 Warning Label 93616-1 [1] ---
26 Screw 23981574 [32] [SS]
6 Diaphragm Screw 93810-2 (2) [D]
15 Fluid Cap 23981640 (2) [D]
60 Inlet Manifold 23981681 (1) [D]
61 Outlet Manifold 23981723 (1) [D]
43 Ground Lug 93004 (1) [Co]
6 Diaphragm Screw 93810-3 (2) [K]
15 Fluid Cap 23981657 (2) [K]
60 Inlet Manifold 23981699 (1) [K]
61 Outlet Manifold 23981731 (1) [K]
43 Ground Lug --- 　 　
6 Diaphragm Screw 93810-1 (2) [P]
15 Fluid Cap 23981632 (2) [P]
60 Inlet Manifold 23981673 (1) [P]
61 Outlet Manifold 23981715 (1) [P]
21 seat 96580-2 (4) [D]
21 seat 96580-3 (4) [K]
21 seat 96580-1 (4) [P]
21 seat 96745 (4) [P]
21 seat 96745-1 (4) [K]
21 seat 96745-2 (4) [D]
22 ball 96481-A (4) [Sp]
22 ball 96481-C (4) [H]
22 ball 96481-G (4) [B]
22 ball 96481-4 (4) [T]
7 Diaphragm 93808 (2) [Sp]
7 Diaphragm 93808-C (2) [H]
7 Diaphragm 93808-G (2) [B]
7 Diaphragm 93898 (2) [T]
19 Seal 93761 4 [E]
19 Seal Y325-119 4 [B]
19 Seal Y325-119 4 [B]
19 Seal 96514 4 [T]
AIR SECTION PARTS
Item Description Part no Qty [Mtl]
　 (PD01X) 23981392 (1) [P]
　 (All PE01X without Diaphragm Failure Detection) 23981392 (1) [P]
　 (PE01X With Diaphragm Failure Detection) 23981608 (1) [P]
　 (PD01E and PE01E)
(not available with Diaphragm Failure Detection)		 24243354 (1) [GP]
　 (PD01X, PE01X-XXX-XXX-X0XXX) 23981434 (1) [P]
　 (All PE01X with Solenoid) 23981848 (1) [P]
　 (PD01X, PE01X-XXX-XXX-X0XX) 24028268 (1) [D]
　 (All PE01X with Solenold) 24086779 (1) [D]
　 (PD01X, PE01X-XXX-XXX-XX0XX) 23981475 (1) [P]
　 (PE01X-XXX-XXX-XXNXX) 24110926 (1) [P]
　 (PE01X-XXX-XXX-XXPXX) 24110926 (1) [P]
　 (PE01X-XXX-XXX-XXEXX) 24110934 (1) [P]
　 (PE01X-XXX-XXX-XXFXX) 24110934 (1) [P]
　 (PE01X-XXX-XXX-XXLXX) 23981475 (1) [P]
132 Gasket 23981525 (1) [B]
　 (PD01X, PE01X-XXX-XXX-X0XXX) 24243388 (1) [P]
　 (All PE01X with Solenoid) 24340275 (1) [P]
137 O-Ring (0.070 CS x 0.676 ID) Y-325-17 (1) [B]
167 Pilot Valve Spool Assembly
(includes seals)		 24028276 (1) [D]
173 O-Ring 24243313 (1) [U]
　 (PE01X-XXX-XXX-XXEXX) 96270-1 (2) 　
　 (PE01X-XXX-XXX-XXLXX) 96270-1 (2) 　
　 (PE01X-XXX-XXX-XXNXX) 96270-1 (2) 　
Item Description Part no Qty [Mtl]
403 Valve (AII PE01X with SoIenoid) 114102 (1) 　
413 Coil Nut (All PE01X with Solenoid) 119380 (1) 　
414 Coil ,120 VAC (PE01X-XXX-XXX-XAXXX) 116218-33 (1) 　
　 Coil ,24 VAC , 12VDC (PE01X-XXX-XXX-XBXXX) 116218-38 (1) 　
　 Coil ,240 VAC (PE01X-XXX-XXX-XCXXX) 116218-35 (1) 　
　 Coil ,48 VAC, 24VDC (PE01X-XXX-XXX-XDXXX) 116218-39 (1) 　
　 Coil, ATEX, 12VDC
(PE01X-XXX-XXX-XGXXX)		 117345-38 (1) 　
　 Coil, ATEX, 24VDC
(PE01X-XXX-XXX-XHXXX)		 117345-39 (1) 　
　 Coil, ATEX, 220VAC
(PE01X-XXX-XXX-XKXXX)		 117345-35 (1) 　
415 O-Ring (AII PE01X with Solenoid) 114103 (1) [B]
416 O-Ring (AII PE01X with Solenoid) 114104 (1) [B]
417 Screw (AII PE01X with Solenoid) 96728647 (2) 　
418 Tube (AII PE01X with Solenoid) 15309974 (1) [SS]
419 Seal (AII PE01X with Solenoid) 96957 (1) [B]
420 Snap Ring (AII PE01X with Solenoid) Y147-43 (1) 　
421 Retainer (AII PE01X with Solenoid) 96954 (1) [B]
429 Solenoid Muffler
(AII PE01X with Solenoid)		 116464 (1) 　
