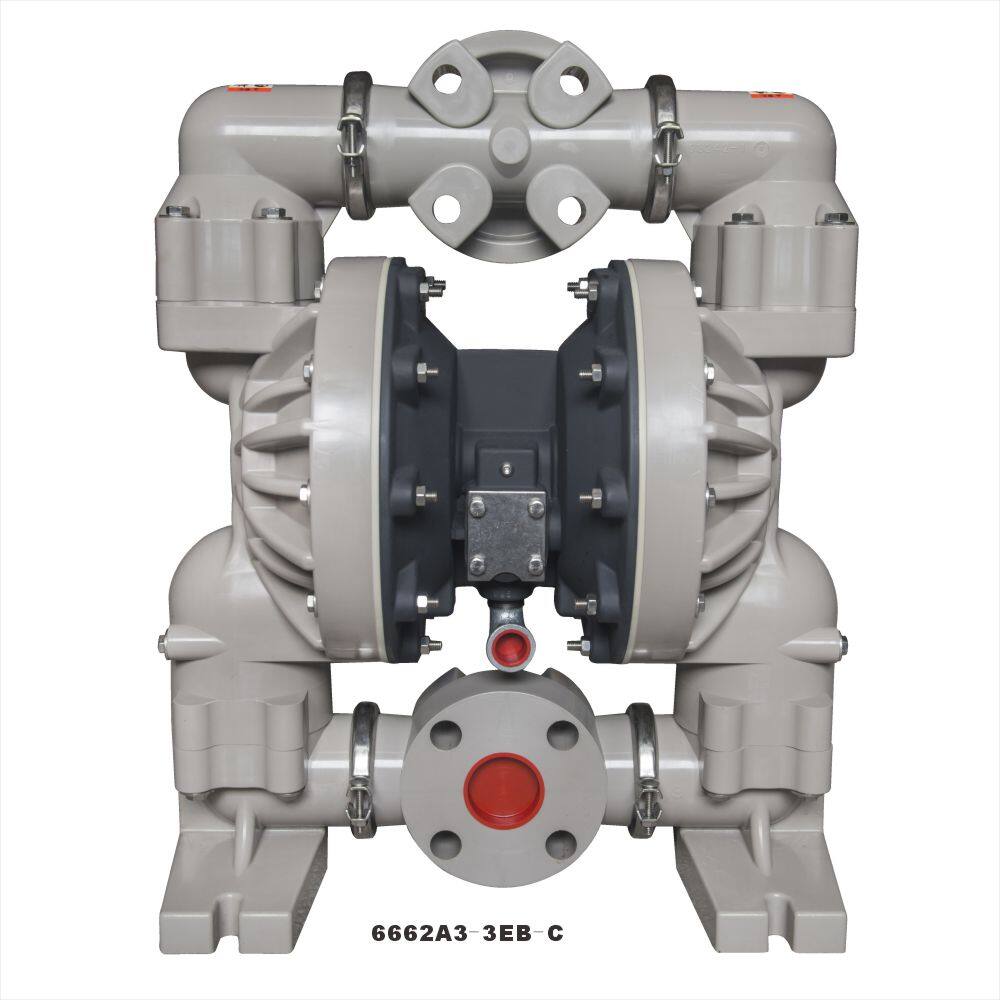

6662A3-3EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap & Manifold Material | Polypropylene |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Flow Rate | 145 gpm (548.8 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -120° to 930° |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI Class 150 Flange |
| Air Inlet (female) | 1/2 – 14 NPTF |
| Air Exhaust (female) | 3/4 – 14 NPTF |
| Size | 2″ (51 mm) |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
